Marine Boat 316L Vertical Windlass Anchor Drum Winch 12V 600/900/1000W

Marine Boat 316L Vertical WindlassAnchor Drum Winch 12V 600/900/1000W

Design for boats up to 14m/45ft

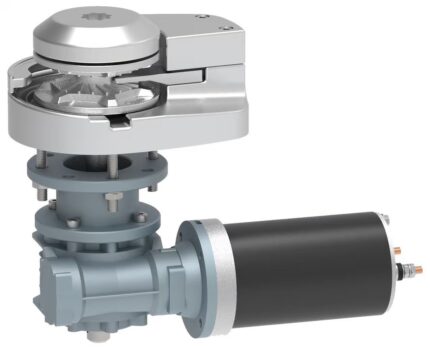

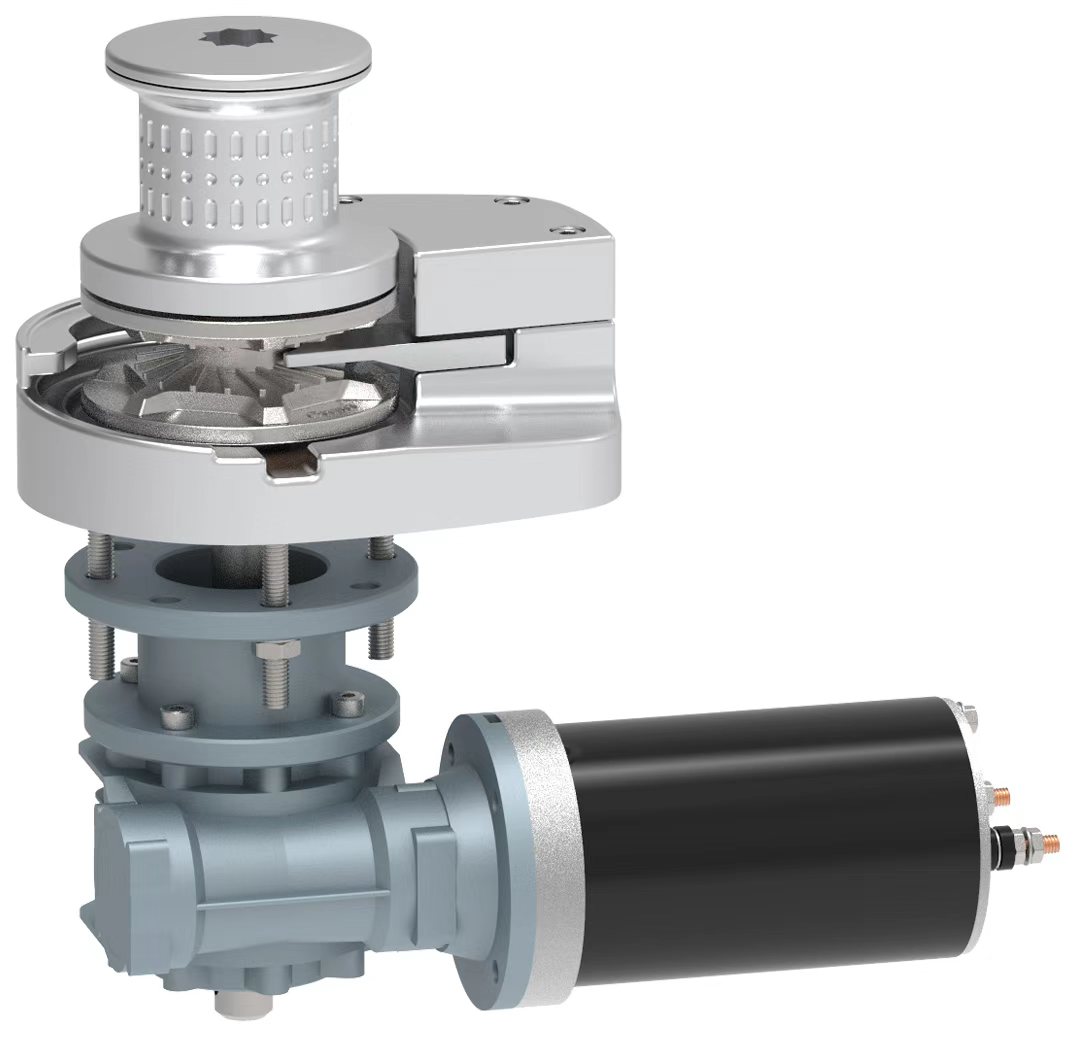

Comes with powerful drives motors, designed for the rigid conditions of the sea. Deck unit and vertical shaft is constructed of solid AISI 316L Stainless Steel for long term, trouble-free operation. These Low Profile windlass models are designed for smooth, silent operation and take up less

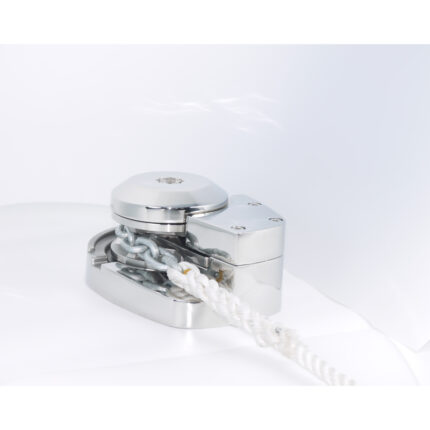

space on the deck. Works with chain only or rope/chain Combination.

Deck thickness: 20-40mm(3/4″-1.5″); On request, shaft and studs can be supplied for greater deck thickness up to 65mm/2.5″.

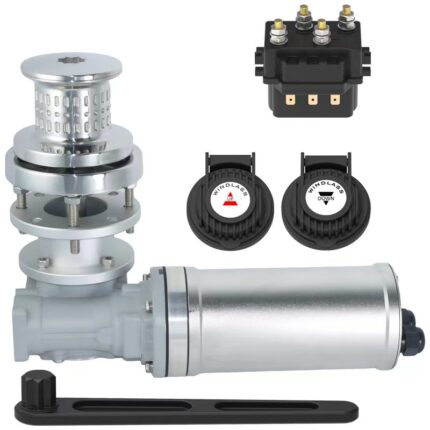

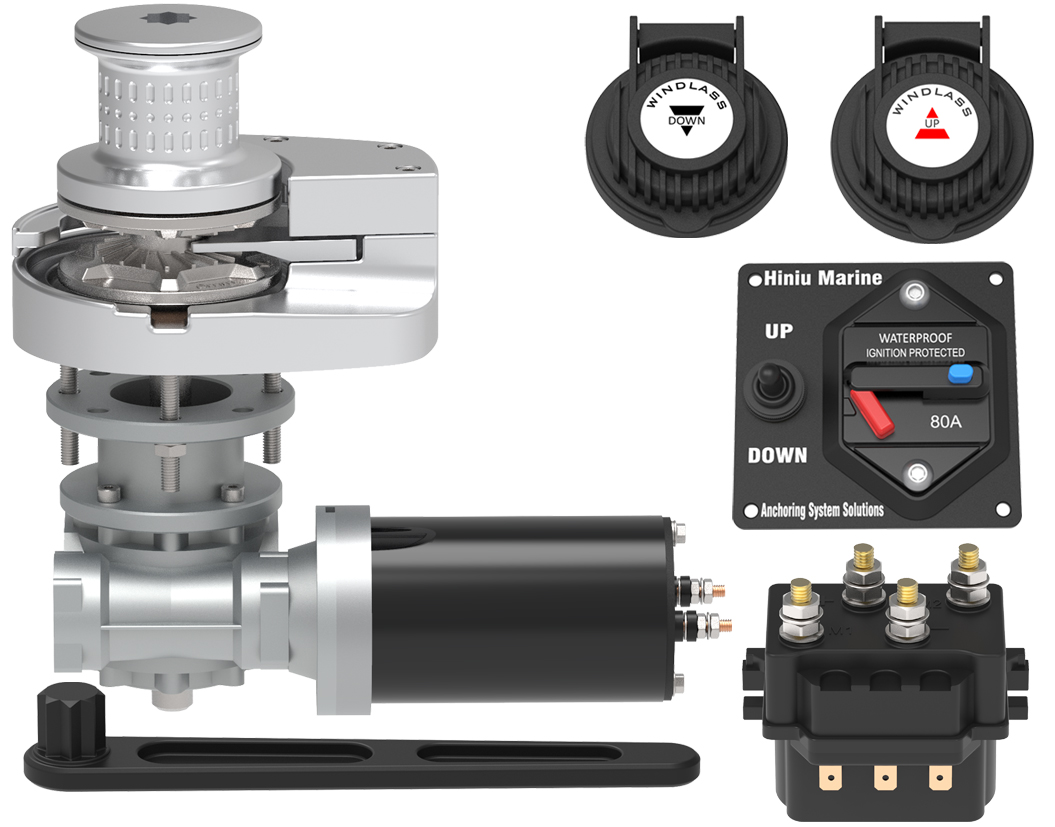

Each anchor winch includes one matching solenoid, one set of combination panel switches (including one matching circuit breaker), one set of foot switch, and one handle.

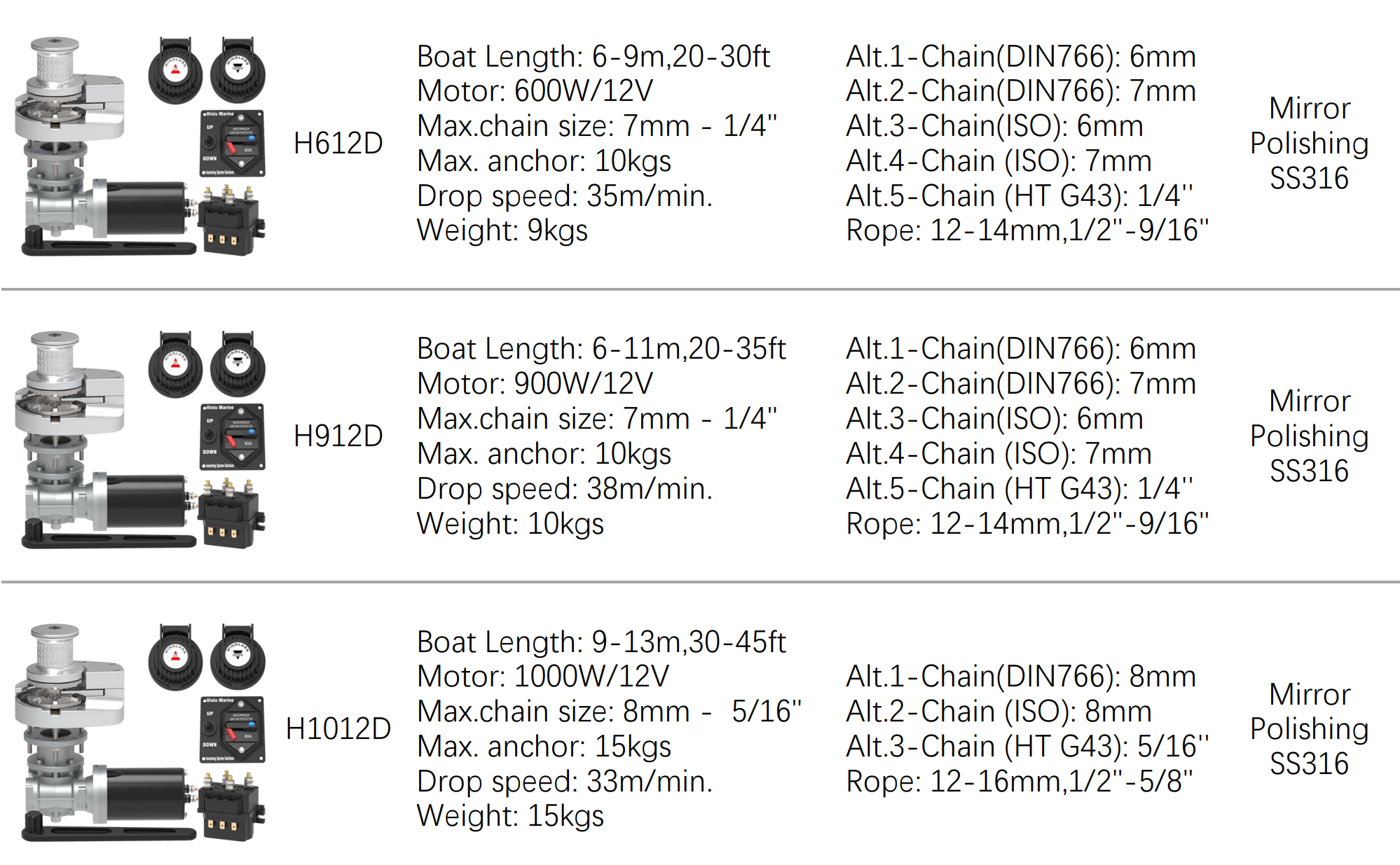

H612DSpecifications:

Ideal for Boats: 6-9m,20-30ft

Motor: 600W/12V

Absorbtion @ working load: 50A

Maximum lifting load: 540kg / 1190lb.

Maximum working load: 180kg / 397lb.

Max.chain size: 7mm –  1/4″

Max. anchor: 10kgs

Drop speed: 35m/min.

Deck thickness: 20-40mm

Weight: 9 kgs

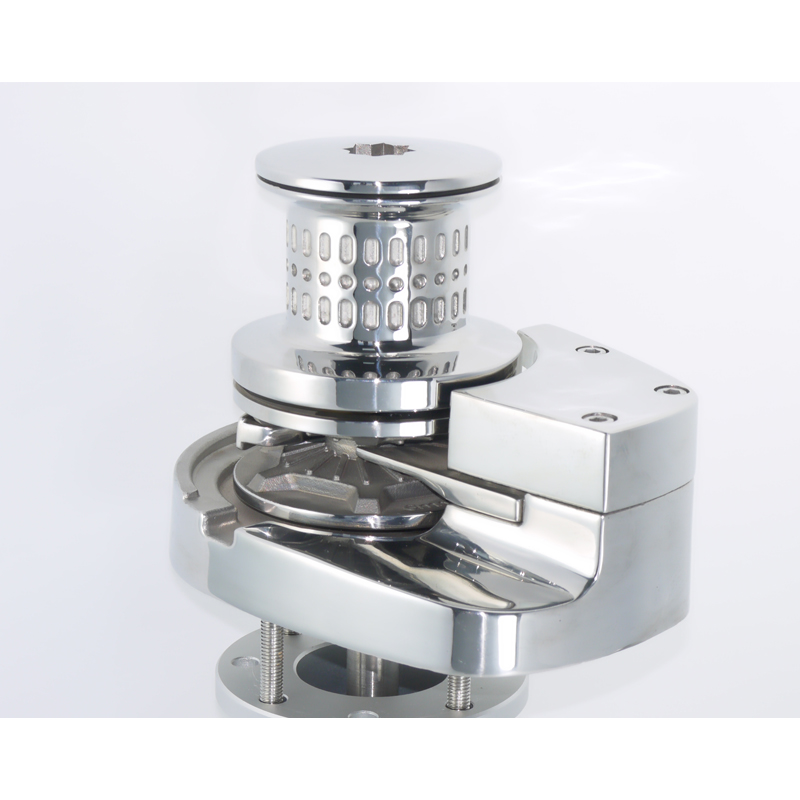

Mirror Polishing SS316

GypsySize Option 1-Chain(DIN766): 6mm

Gypsy Size Option2-Chain(DIN766): 7mm

Gypsy Size Option3-Chain(ISO): 6mm

Gypsy Size Option4-Chain (ISO): 7mm

Gypsy Size Option5-Chain (HT G43): 1/4”

Rope: 12-14mm,1/2″-9/16″

H912DSpecifications:

Boat Length: 6-11m,20-35ft

Motor: 900W/12V

Absorbtion @ working load: 80A

Maximum lifting load:660kg / 1,467lbs

Maximum working load: 220kg / 488lbs

Max.chain size: 7mm – 1/4″

Max. anchor: 10kgs

Drop speed: 38m/min.

Weight: 10kgs

Mirror Polishing SS316

Gypsy Size Option1-Chain(DIN766): 6mm

Gypsy Size Option2-Chain(DIN766): 7mm

Gypsy Size Option3-Chain(ISO): 6mm

Gypsy Size Option4-Chain (ISO): 7mm

Gypsy Size Option5-Chain (HT G43): 1/4”

Rope: 12mm,1/2″

H1012DSpecifications:

Boat Length: 9-13m,30-45ft

Motor: 1000W/12V

Absorbtion @ working load: 85A

Maximum lifting load:750kg / 1,666lbs

Maximum working load: 250kg / 555lbs

Max.chain size: 8mm – 5/16″

Max. anchor: 15kgs

Drop speed: 33m/min.

Weight: 15kgs

Mirror Polishing SS316

Gypsy Size Option1-Chain(DIN766): 8mm

Gypsy Size Option2-Chain (ISO): 8mm

Gypsy Size Option3-Chain (HT G43): 5/16”

Rope: 14-16mm,9/16″-5/8″

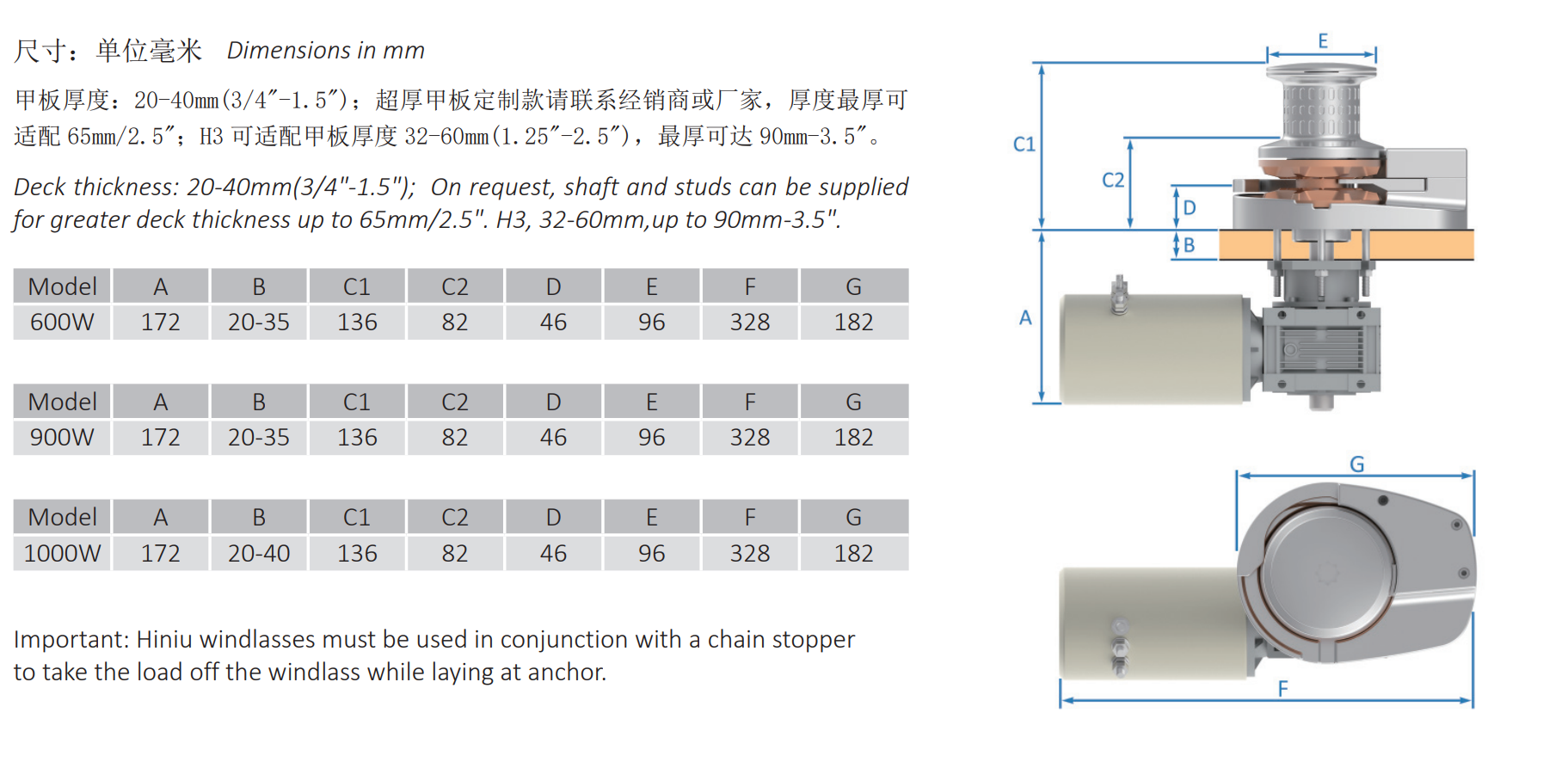

For winch dimensions, please see the winch listing photo.

The listing price does not include any destination duties/taxes/custom fees/etc. that will be due when the product arrives at destination countries/regions. It is the customer’s responsibility to pay for all custom duty/taxes/custom fees if any.
