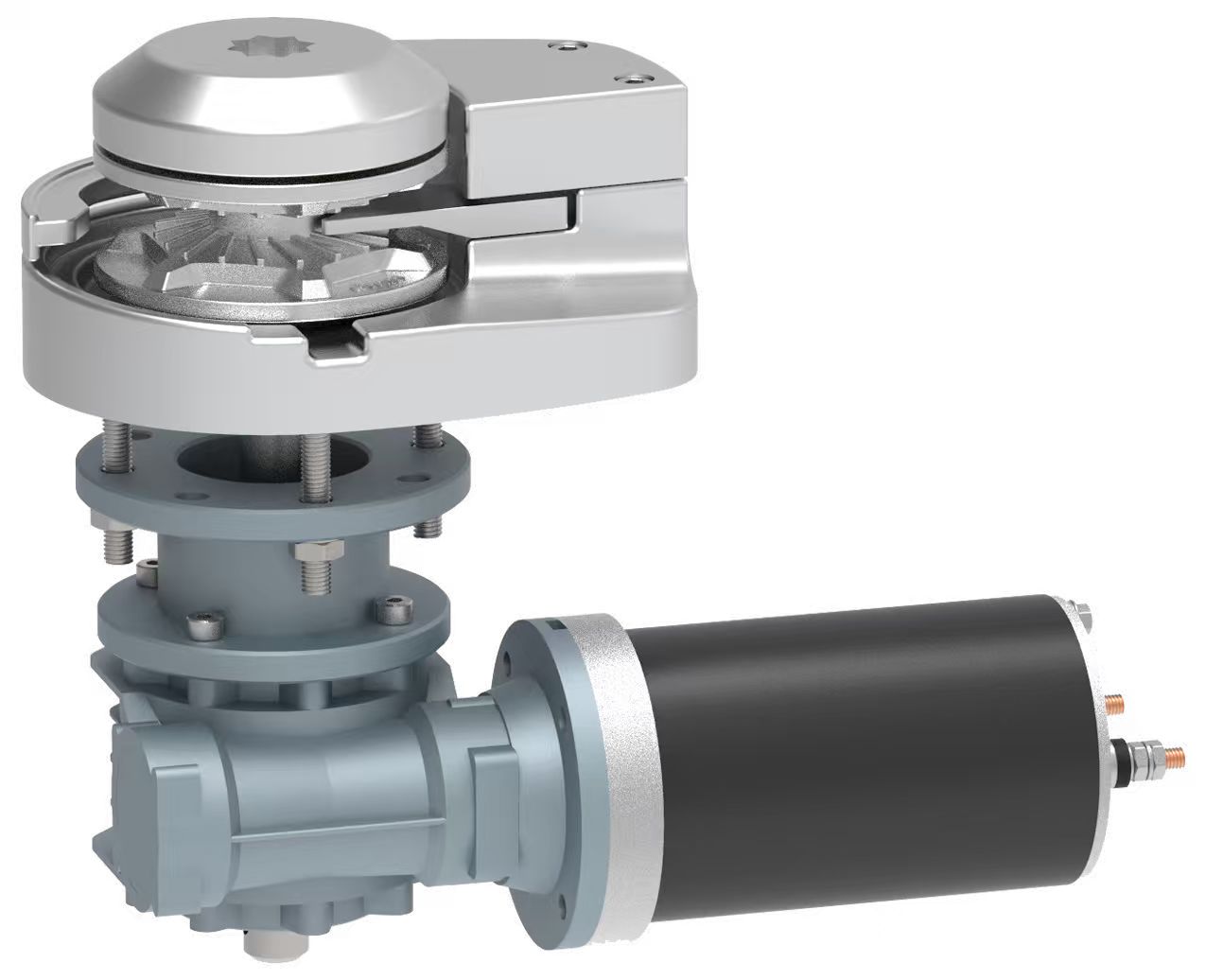

Marine Boat Yacht 316LStainless SteelVertical Windlass Anchor Winch 24V 2500W
Design for boats up to 28m/90ft
Comes with powerful drives motors, designed for the rigid comditions of the sea. Deck unit and vertical shaft is constructed of solid AISI 316L Stainless Steel for long term, trouble-free operation. These Low Profile windlass models are designed for smooth, silent operation and take up less
space on the deck. Works with chain only or rope/chain Combination.
Deck thickness: 30-65mm; On request, shaft and studs can be supplied for greater deck thickness up to 190mm/7.5″.

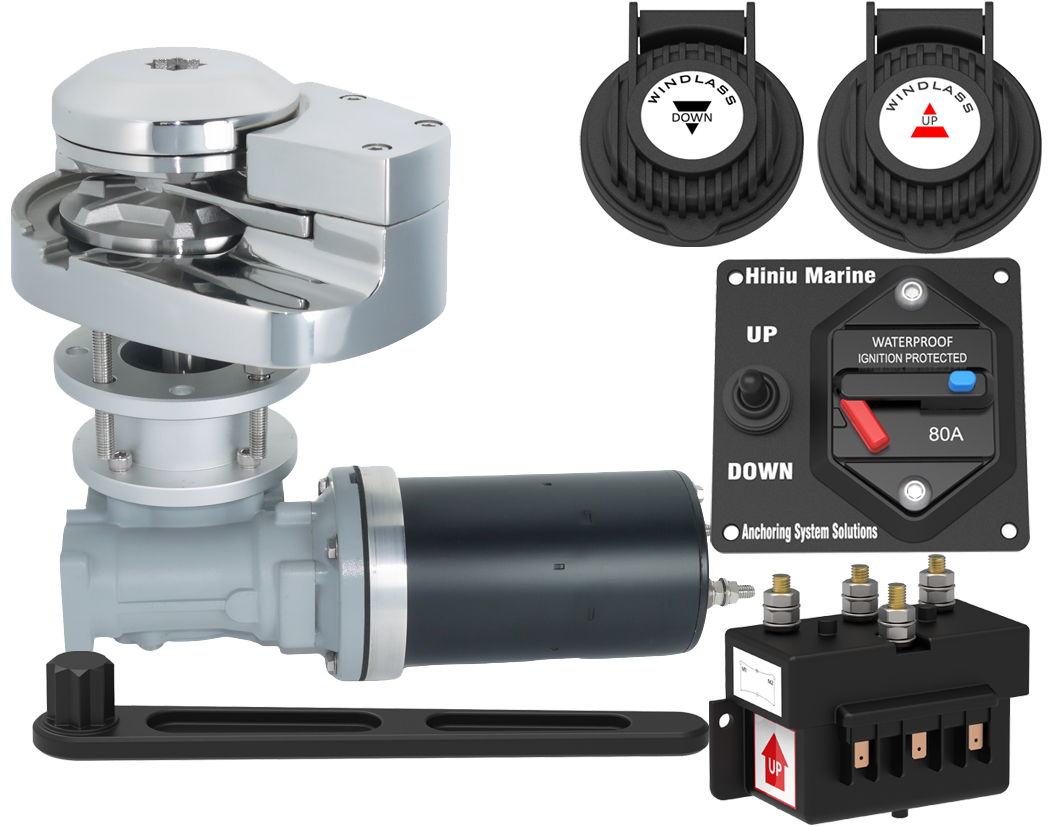

Each anchor winch includes one matching solenoid, one set of combination panel switches (including one matching circuit breaker), one set of foot switch, and one handle.
H2524Specifications:
Boat Length: 12-27m,40-90ft
Motor: 2500W/24V
Absorbtion @ working load: 166A
Maximum lifting load:2000kg / 4,400lbs
Maximum working load:900kg / 1,980lbs
Max.chain size: 10mm – 3/8″
Max. anchor: 60kgs
Drop speed: 32m/min.
Weight: 32kgs
Mirror Polishing SS316
GypsySize Option 1-Chain(DIN766): 10mm
Gypsy Size Option2-Chain(DIN766): 13mm
Gypsy Size Option3-Chain(ISO): 12mm
Gypsy Size Option4–Chain (HT G43)：3/8 inch
Gypsy Size Option5-Chain (HT G43): 1/2 inch
Rope: 14-22mm,9/16″-5/8″
For winch dimensions, please see the winch listing photo.
The listing price does not include any destination duties/taxes/custom fees/etc. that will be due when the product arrives at destination countries/regions. It is the customer’s responsibility to pay for all custom duty/taxes/custom fees if any.
