Marine Boat Yacht 316L SS Vertical Windlass Anchor Winch 12V 1200/1500/1800W

Marine Boat Yacht 316L SS Vertical Windlass Anchor Winch 12V 1200/1500/1800W

Design for boats up to 20m/65ft

Comes with powerful drives motors, designed for the rigid comditions of the sea. Deck unit and vertical shaft is constructed of solid AISI 316L Stainless Steel for long term, trouble-free operation. These Low Profile windlass models are designed for smooth, silent operation and take up less

space on the deck. Works with chain only or rope/chain Combination.

Deck thickness: 25-65mm/1″-2.5″; On request, shaft and studs can be supplied for greater deck thickness up to 90mm/3.5″

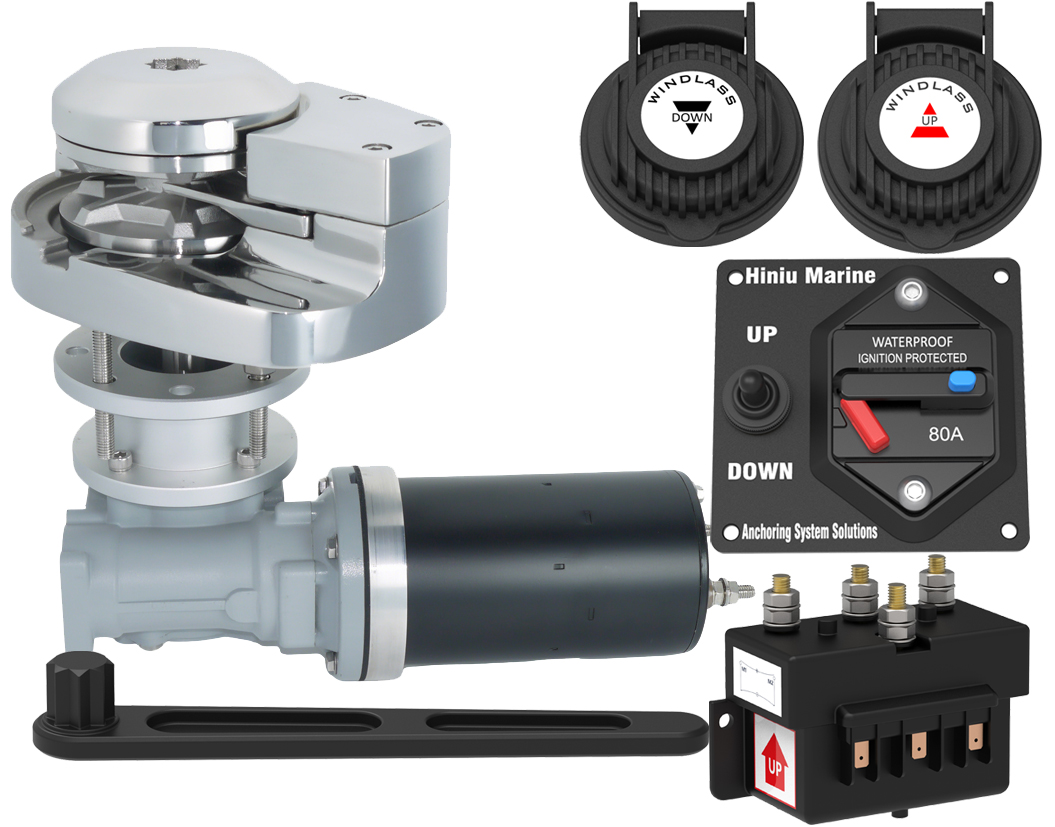

Each anchor winch includes one matching solenoid, one set of combination panel switches (including one matching circuit breaker), one set of foot switch, and one handle.

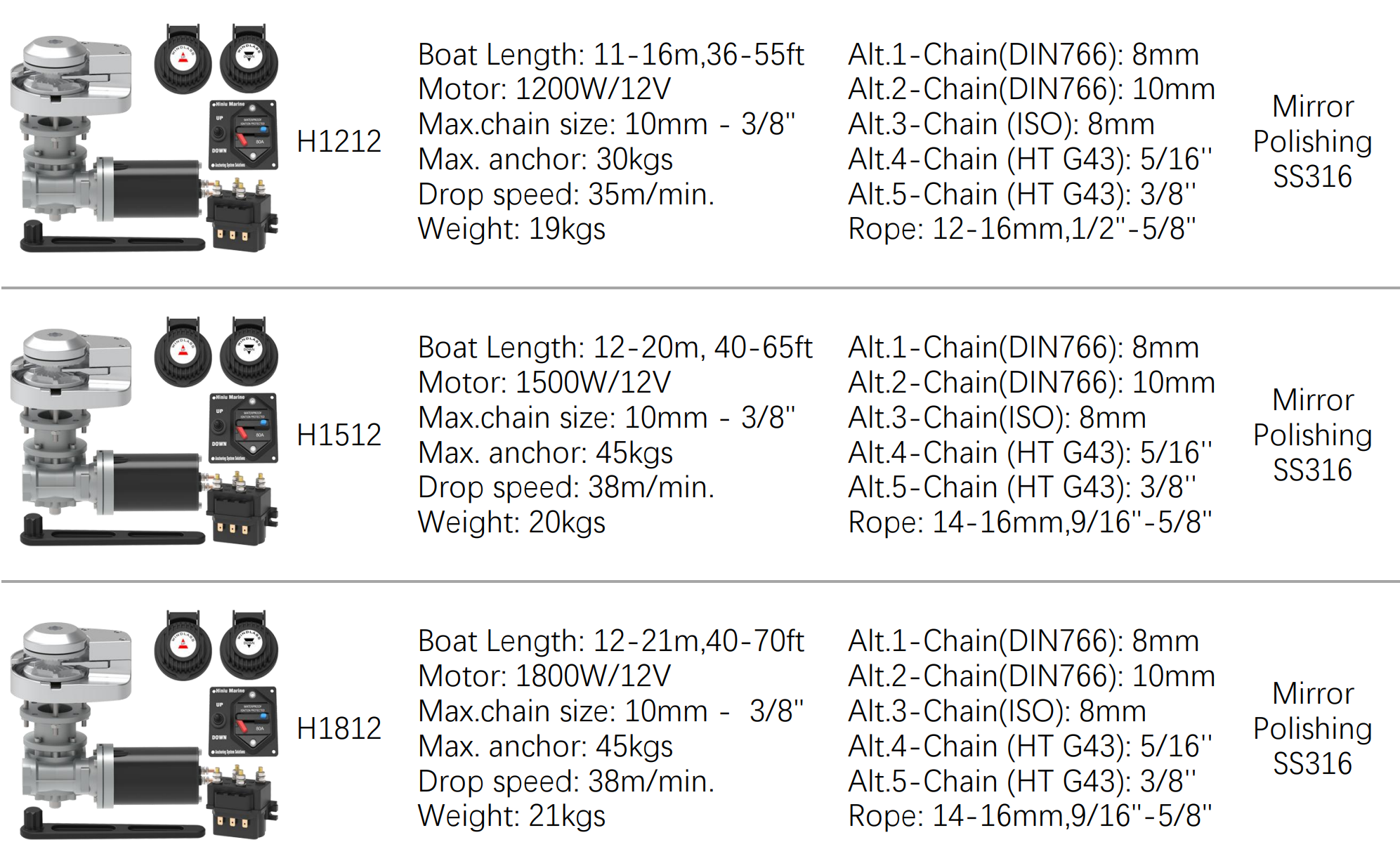

H1212Specifications:

Boat Length: 11-16m,36-55ft

Motor: 1200W/12V

Absorbtion @ working load: 95A

Maximum lifting load:1100kg / 2,420lbs

Maximum working load: 400kg / 880lbs

Max.chain size: 10mm – 3/8″

Max. anchor: 30kgs

Drop speed: 35m/min.

Weight:19kgs

Mirror Polishing SS316

GypsySize Option 1-Chain(DIN766): 8mm

Gypsy Size Option2-Chain(DIN766): 10mm

Gypsy Size Option3-Chain(ISO): 8mm

Gypsy Size Option4–Chain (HT G43)：5/16inch

Gypsy Size Option5-Chain (HT G43): 3/8 inch

Rope: 12-16mm,1/2″-5/8″

H1512Specifications:

Boat Length: 12-20m, 40-65ft

Motor: 1500W/12V

Absorbtion @ working load: 125A

Maximum lifting load:1,200kg / 2,666lbs

Maximum working load:485kg / 1,078lbs

Max.chain size: 10mm – 3/8″

Max. anchor: 45kgs

Drop speed: 38m/min.

Weight: 20kgs

Mirror Polishing SS316

GypsySize Option 1-Chain(DIN766): 8mm

Gypsy Size Option2-Chain(DIN766): 10mm

Gypsy Size Option3-Chain(ISO): 8mm

Gypsy Size Option4–Chain (HT G43)：5/16inch

Gypsy Size Option5-Chain (HT G43): 3/8 inch

Rope: 14-16mm,9/16″-5/8″

H1812Specifications:

Boat Length: 12-21m,40-70ft

Motor: 1800W/12V

Absorbtion @ working load: 165A

Maximum lifting load:1,360kg / 3,022lbs

Maximum working load:555kg / 1,233lbs

Max.chain size: 10mm – 3/8″

Max. anchor: 45kgs

Drop speed: 38m/min.

Weight: 21kgs

Mirror Polishing SS316

GypsySize Option 1-Chain(DIN766): 8mm

Gypsy Size Option2-Chain(DIN766): 10mm

Gypsy Size Option3-Chain(ISO): 8mm

Gypsy Size Option4–Chain (HT G43)：5/16inch

Gypsy Size Option5-Chain (HT G43): 3/8 inch

Rope: 14-16mm,9/16″-5/8″

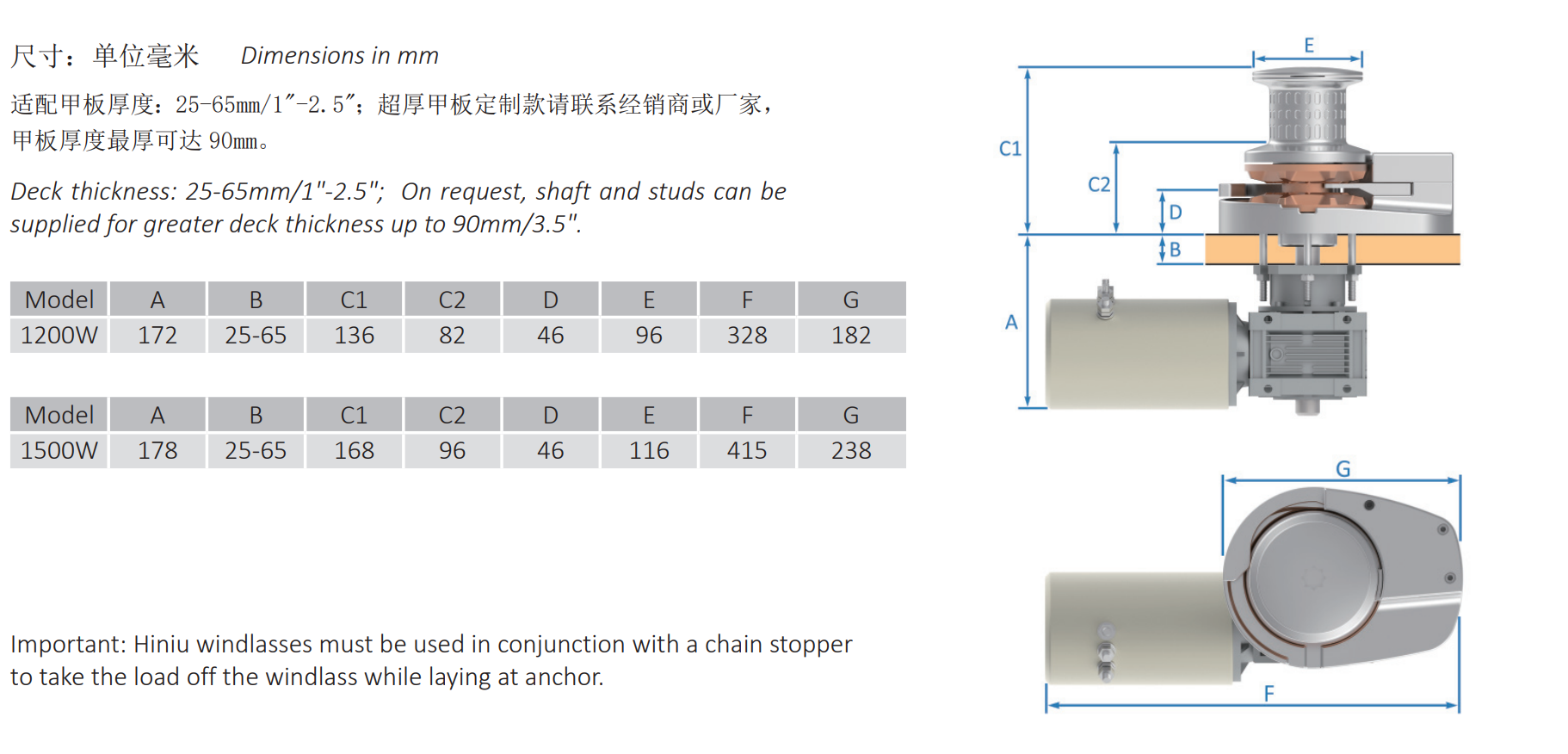

For winch dimensions, please see the winch listing photo.
